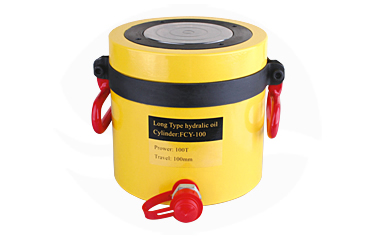

Item No:RSC-100100 Hydraulic Cylinder
ITEM NORSC-10010
Tonnage ton(T) 100
Work travel(mm) 100
Cylinder Effective Area(cm2)103.8
Oil Capacity(L) 1.32
Collapsed Height(mm) 249
Extended Height(mm) 349
Outside Dia. (Ømm) 177
Cylinder Bore Dia.(Ømm) 130
Plunger Dia(Ømm) 110
Thread for input oil-port(zg)3/8"-19
Saddle Protrusion from Plgr.(mm) 28
Weight(kg) 30
