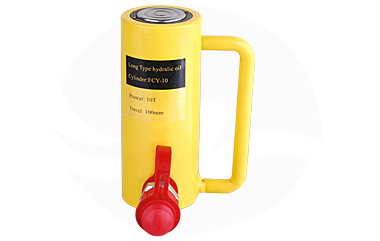

Item No:RSC-10100 Hydraulic Cylinder
ITEM NORSC-10100
Tonnage ton(T) 10
Work travel(mm) 100
Cylinder Effective Area(cm2)13.8
Oil Capacity(L) 0.145
Collapsed Height(mm) 189
Extended Height(mm) 289
Outside Dia. (Ømm) 58
Cylinder Bore Dia.(Ømm) 43
Plunger Dia(Ømm) 38
Thread for input oil-port(zg)3/8"-19
Saddle Protrusion from Plgr.(mm) 17
Weight(kg) 3.5
