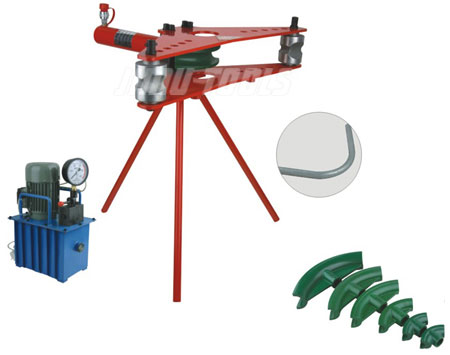

Item No:CPB-3 Hydraulic Pipe Bender

Model: CPB-3
Name: Split hydraulic pipe bender
Output: 19T
Stroke: 320mm
Required fuel: 1500cc
Crimping range: 1 / 2 "-3"
OD: Φ21.3mm-Φ88.5mm
Configuration mold: 1 / 2 "3 / 4"1 "11 / 4"11 / 2 "2 " 21 / 2 "3 "
Pipe wall thickness :2.75-5mm
Weight: 79.5kg

Use: for general pipe, conduit, gas pipe, thick steel pipe, the maximum bending angle of 90 degrees.
Can be equipped with electric pump or manual pump for use.
Ductile iron molds are used, than ordinary cast iron has higher strength, good toughness and ductility, more resistant to use, easy to break.
Quality assurance: within 3 months of non-human damage to the company to provide warranty service, ease of use.
