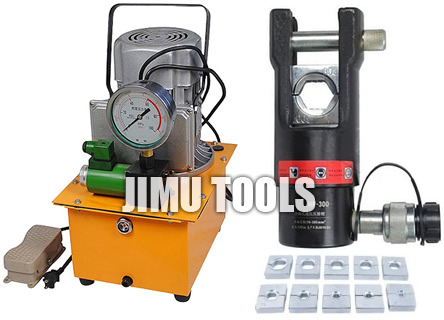

Item No:ECO-300 Electro-hydraulic Crimping Tool

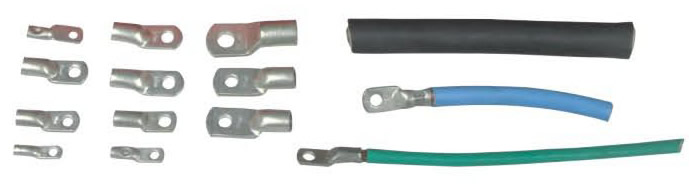

# Uses and characteristics: ECO-300 electric hydraulic clamp is a recently developed efficient practical hydraulic crimping tool. It uses the hydraulic power to promote increased lower mold, when the upper and lower mold contact, crimp completed. The copper and aluminum terminals applicable to a variety of indoor and outdoor of the transmission and distribution line nose, and the cable crimping. 1. Hexagonal crimping, solid and reliable, good electrical conductivity. 2 single-acting hydraulic power, easy to apply. 3 bolt connection can be quickly removed, Die positioning easier. # with hydraulic pump: with single-acting hydraulic electric pump or manual hydraulic pump. # connector thread: PT3 / 8 "

# Features: 1. Crimp wide number of small elongation can be controlled to reduce the deformation. 2 single-acting hydraulic power, easy to apply. 3 bolt connection can be quickly removed, Die positioning easier.
# with hydraulic pump: with single-acting hydraulic electric pump or manual hydraulic pump.
# Packaging: metal box
# Technical parameters: 1. Contribute (T): 12T. 2. Crimping capacity (mm2) :16-300. Piston stroke (mm): 22 Dimensions (mm) 215X130X70 Weight (kg): 2.3. 6. Standard mold: 16, 25, 35,50,70,95,120,150,185,240,300 mm2
