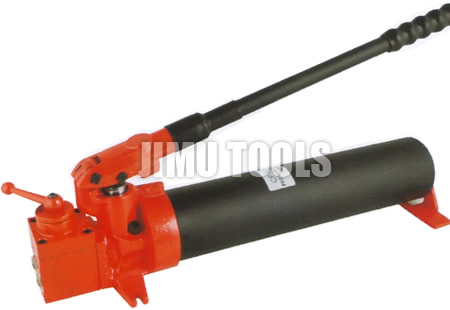

Model P-84
The type of two-speed pump
Available oil capacity 2200cm3
Rated pressure (first stage) 25 (bar)
Rated pressure (second stage) 700 (bar)
Row of oil per stroke (the first level) 16.22cm3
Row of oil per stroke (second level) 2.46cm3
Two-speed operation, the operator can reduce labor intensity.
P-84 and P-464 is equipped with four-way valve can be used to operate double acting cylinders and jacks.
Other models with external unloading valve, used to operate single acting cylinders and jacks.
Built-in safety valve for overload protection.
Fuel tank capacity, able to match the fuel tank, jack, and a wide range of hydraulic tools.
Is to manually convert the mechanical energy of a fluid pressure to a small hydraulic pump station. In supporting the fuel tank and special tools, cases, various operations, such as lifting, bending, straightening, cutting, riveting, assembly, disassembly and some construction works. The main characteristics of pump: power to manual, high pressure, small size, light weight, reasonable structure, reliable performance, output pressure stability, easy to carry, especially for Quefa power construction, electricity, vehicle maintenance and other field operations.
|
