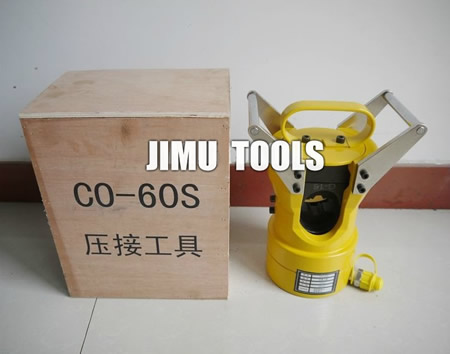

Item No:CO-60S Hydraulic compression tool

Name: CO-60S Hydraulic Compression Machine
Model: CO-60S
Details:

# Use: CO-60S Hydraulic Compression Machine (tonnage) is a recent development of effective, efficient hydraulic crimping tool. It uses hydraulic power driven mode rise, when the upper and lower mold contact, crimp completion. For more than 110KV overhead Tension casing, and underground cable crimping.
# Features: 1.'s Largest steel and aluminum casing for the terminal Φ55mm, the largest steel casing is Φ36mm, crimping wide, the number of small, controlled elongation, to reduce distortion. 2 Double acting hydraulic cylinder can be reset to avoid the spring fatigue arising from the problem of slow. At the same time the piston reset time can be shortened.

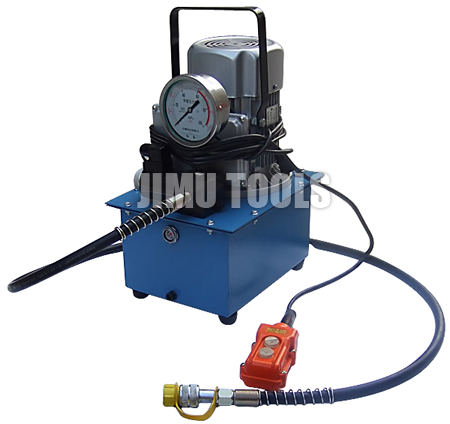

# Equipped with hydraulic pumps: Hydraulic electric pump with a single pipeline ZCB-7000B or EHP-63A.
# Optional molds: aluminum mold: 26,28,30,32,34,36,40,45. Steel: 10,12,14,16,18,20,22,24. Random with a pair of mold.
# Packing: wooden box
# Technical Parameters:
Output (T): 60T
Crimping capacity (mm): Φ16-Φ55
Piston stroke (mm): 38.5
Dimensions (mm): 340X140
Weight (kg): 21.5
